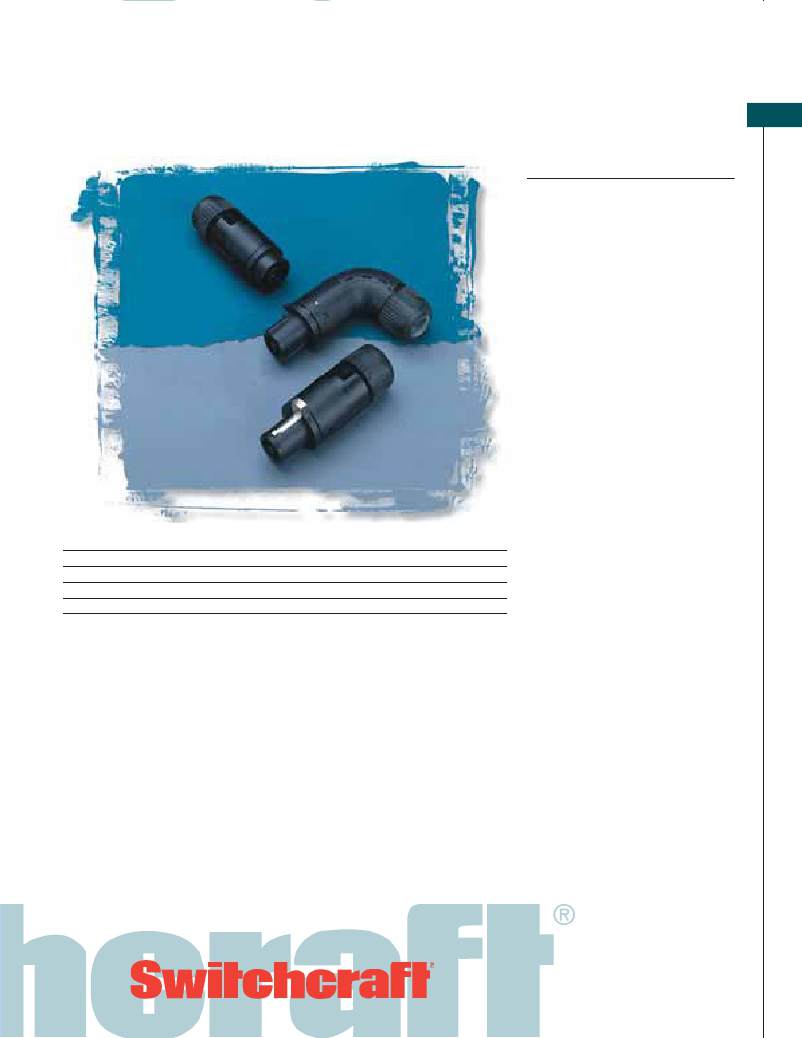

HPC Connector Series
HPC Cord, & Adapter Style Series
Specifications
51
HPC14F
HPCC4F
HPCC4RAF
Mechanical
(Panel and Cord Mounts)
Shock: Per Mil-Std 202,
Method 213B, Cond. K
Vibration: Mil-Std 202,
Method 201A
Life: 1,000 rotational cycles
Cable Range (cord mount):
10AWG, 0.560" cable OD
maximum
Electrical
(Panel and Cord Mounts)
Voltage Rating: 1,500 AC RMS,
per Mil-Std 202, Method 301
Current Rating (Faston ? termi-
nals): 50A RMS w/10AWG
wire, normal ambient, per
UL 1977
Current Rating (PC terminals):
30A per UL 1977
Contact Resistance: 1m , 1.5m
after 1,000 insertion/withdrawals
Insulation Resistance: > 2T
Ordering Information
Part Number Style
Notes
Environmental
(Panel and Cord Mounts)
HPCC4F
HPCI4F
HPCC4RAF
Cord
Cord
Cord
Straight with 0.250" faston terms
Inline with 0.250" faston terms
Right angle with 0.250" faston terms
Salt Spray: Mil-Std 202, Method
101D, Cond. B
Thermal Shock: Mil-Std 202,
See Page 62 for Mechanical Drawings
Method 107G
Temperature Limits:
-55?C to +85? C
Moisture Resistance: Mil-Std.
202, Method 106E
Life @ Ambient Temperature:
Mil-Std 202, Method 108A
Touchproof: IEC 65 and 1010-1
IP Rating: IEC 529, IP 25
Materials
(Panel and Cord Mounts)
Housings:
Thermoplastic UL 94V-0 rated
Seal Rings: Thermoplastic rubber
Contacts: Silver-plated over
copper alloy
